GI/MS Tank Water Heater

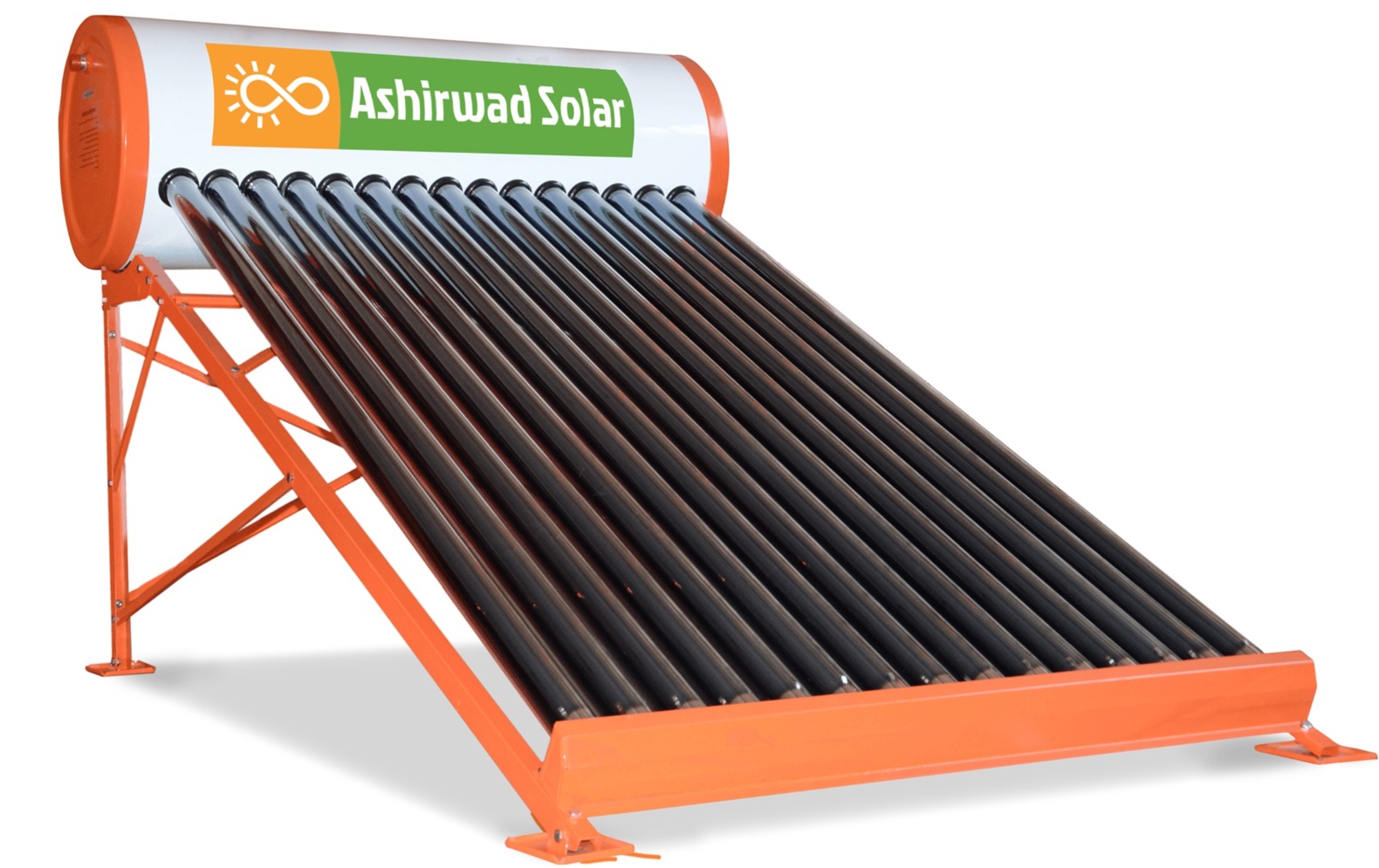

GI/MS Tank Solar Water Heater (100 to 1000 LPD) by Ashirwad Solar
A GI/MS tank solar water heater uses evacuated tubes to heat water with sunlight and keeps it hot in an insulated GI or MS tank. Ashirwad Solar makes these systems in Pune from 100 to 1000 litres per day, for homes, hotels, hostels and industry.
Ashirwad's double-insulated solar water heaters are among the best-in-class water heaters made in India. Enjoy free and unlimited hot water with systems ranging from 100 LPD to 1000 LPD. Our heaters are built to be durable, long-lasting and low on maintenance, which has been our speciality for many years.
Get a Quote Call +91 99224 26936 WhatsApp
Key Features of Our GI/MS Tank Solar Water Heater
- Double insulation: PUF insulation around the tank keeps water hot. The overnight temperature drop is only about 5 degrees Celsius.
- Hot water at about 60 degrees Celsius: Enough for bathing, kitchen and washing needs.
- No pump, no electricity for circulation: Thermosyphon circulation moves hot water on its own.
- ETC technology: 58 mm evacuated tubes absorb heat well, even on cooler or cloudy days.
- Choice of inner tank: MS, SS304 or GI, to suit your water quality and budget.
- GI pre-coated finish: Protects the outer body against weather.
- Wide range: 100, 150, 200, 300, 500 and 1000 LPD for small homes to large institutions.
- Made in India: Built at our own factory unit in Haveli, Pune.
Technical Specifications
| Technical Specifications: | ||||||
|---|---|---|---|---|---|---|
| Capacity (LPD) | 100 | 150 | 200 | 300 | 500 | 1000 |
| Suitable for | 1-3 persons | 3-4 persons | 5-7 persons | 8-10 persons | 18-20 persons | 35+ persons |
| Hot water connections | 1 point | 1 point | 1 to 2 points | 2 to 3 points | 3 to 5 points | - |
| Expected annual savings (₹) | 11000 | 17000 | 22000 | 30000 | 50000 | - |
| Area required | 1.1 m x 1.9 m | 1.5 m x 1.9 m | 2.0 m x 1.9 m | 2.8 m x 1.8 m | 3.7 m x 1.8 m | - |
| No. of tubes | 10 | 15 | 20 | 30 | 32 | 100 |
| Tube size | 58x1800 mm | 58x1800 mm | 58x1800 mm | 58x1800 mm | 58x2100 mm | 58x1800 mm |
| Circulation | Thermosyphon | |||||
| Hot water temp | 60 degrees Celsius | |||||
| Overnight temp drop | 5 degrees Celsius | |||||
| Inner tank | MS / SS304 / GI | |||||
| Coating | GI pre-coated | |||||
| Tank insulation | PUF | |||||
Savings and area figures are indicative and depend on your location, usage and the fuel you use today. For 1000 LPD systems, please ask us for the exact connection, savings and area details.
Which Capacity Do You Need?
Pick the size by the number of people and the hot-water points you use. If you are between two sizes, choose the larger one so you never run short.
For Homes and Apartments (100 to 300 LPD)
A 100 LPD system suits 1 to 3 people, 150 LPD suits 3 to 4 people, 200 LPD suits 5 to 7 people and 300 LPD suits 8 to 10 people. These sizes serve bathrooms and kitchen points in a house or a small building.
For Hotels, Hostels and Institutions (500 to 1000 LPD)
A 500 LPD system suits 18 to 20 people and a 1000 LPD system suits 35 or more people. These are used in hostels, hotels, guest houses, hospitals and industrial canteens. Share your daily hot-water need and we will plan the layout with you.
How a Thermosyphon Solar Water Heater Works
Sunlight Heats the Water in the Tubes
Evacuated tubes absorb sunlight and heat the water inside them. The vacuum layer in each tube cuts heat loss, so the tubes work well even when it is cool outside.
Hot Water Rises on Its Own
Hot water is lighter than cold water, so it moves up into the insulated tank while cooler water flows down into the tubes. This is the thermosyphon principle, and it needs no pump and no electricity.
The Insulated Tank Keeps It Hot
PUF insulation around the tank holds the heat, so you have hot water in the evening and the next morning, with only about 5 degrees Celsius lost overnight.
GI/MS Tank vs SS Tank Water Heater
Both types use the same ETC technology. The difference is in the tank material. This table helps you decide.
| Point | GI/MS tank | SS tank |
|---|---|---|
| Tank material | Galvanised iron or mild steel | Stainless steel |
| Cost | Usually lower | Usually higher |
| Corrosion resistance | Good, depends on water quality | Higher |
| Best for | Budget-friendly homes and buildings with normal water | Places that want maximum tank life or have harder water |
Not sure which one suits your water? Tell us your location and we will advise. See our SS tank water heater for the stainless steel range.

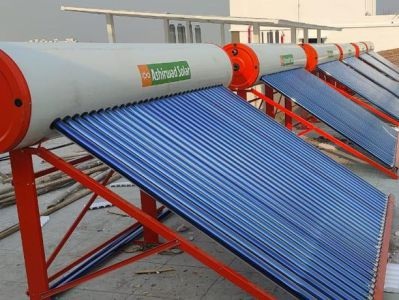

Where to Use a GI/MS Tank Solar Water Heater
- Homes and apartments: Free hot water for bathing and kitchen use.
- Hostels and PGs: One large system serves many rooms.
- Hotels and guest houses: Steady hot water for guests with lower fuel cost.
- Hospitals and clinics: Dependable hot water for daily needs.
- Factories and canteens: Hot water for cleaning, washing and kitchens.
Benefits of Choosing Ashirwad Solar Water Heaters
- Lower power or gas bills: Our table lists expected annual savings from about ₹11,000 (100 LPD) to about ₹50,000 (500 LPD).
- Long life, low upkeep: Built to be durable with very little maintenance.
- Clean energy: Hot water from the sun with no running emissions.
- Trusted maker: We have been in solar since 2007, from fabricating water heater parts to making complete systems.
Installation and Care Tips

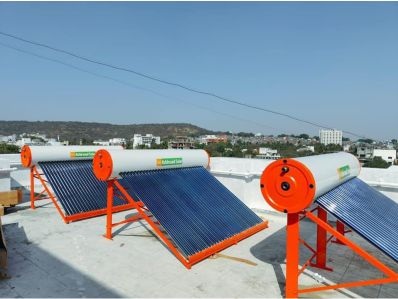

Where to Install
Choose a shadow-free terrace or roof facing the sun for most of the day. Keep the system away from trees and tall buildings that cast shade, and leave space around it for service access.
How to Keep It Working Well
Wipe the tubes clean now and then, especially after dusty or rainy weeks. Have the system checked once a year, and tell us if your water is hard so we can suggest the right care.
Why Buy From Ashirwad Solar
We started in 2007 and today make solar water heaters, ETC tubes, solar panels and more at our factory unit in Gogalwadi, Haveli, Pune. Buying direct from the maker means clear advice, fair pricing and quick service. See our full solar water heater range or our ETC tubes.
Frequently Asked Questions
What is a GI/MS tank solar water heater?
It is a solar water heater that uses evacuated tube collectors (ETC) to heat water and stores the hot water in an insulated tank made of GI (galvanised iron) or MS (mild steel). Ashirwad Solar makes these systems in Pune in capacities from 100 to 1000 litres per day (LPD).
What capacities are available?
We offer 100, 150, 200, 300, 500 and 1000 LPD systems. A 100 LPD system suits 1 to 3 people, 200 LPD suits 5 to 7 people, 500 LPD suits 18 to 20 people and 1000 LPD suits 35 or more people.
Does this water heater need electricity to work?
No. It works on the thermosyphon principle. Hot water rises on its own from the tubes to the tank, so no pump or electricity is needed for circulation.
How hot does the water get, and how much does it cool overnight?
The system is designed to deliver hot water at about 60 degrees Celsius. With PUF insulation, the overnight temperature drop is about 5 degrees Celsius, so you still have warm water the next morning.
How much space do I need to install it?
A 100 LPD system needs about 1.1 m x 1.9 m, a 200 LPD system about 2.0 m x 1.9 m, and a 500 LPD system about 3.7 m x 1.8 m of shadow-free roof or terrace area.
How much money can I save?
Our specification table lists expected annual savings from about 11,000 for a 100 LPD system to about 50,000 for a 500 LPD system. Your real saving depends on what you pay for electricity or gas today and how much hot water you use.
What is the difference between a GI/MS tank and an SS tank water heater?
The difference is the tank material. SS (stainless steel) tanks resist corrosion better and usually cost more. The right choice depends on your water quality and budget. Tell us your location and water type and we will recommend the best option.
Does a solar water heater need maintenance?
Ashirwad systems are built to be durable with very little upkeep. We still recommend cleaning the tubes from time to time and checking the system once a year, especially if your water is hard.
Can I order for my home, hotel, hostel or factory?
Yes. We supply homes, apartments, hotels, hostels, hospitals and industrial canteens. Call +91 99224 26936 or send us your daily hot-water need and we will suggest the right size.
Get a Quote for Your Water Heater
Tell us your city and daily hot-water need. We will suggest the right capacity and send a quote. You can also call +91 99224 26936.
